WQ Submersible Sewage Pump
WQ Submersible Sewage Pump
Product Description

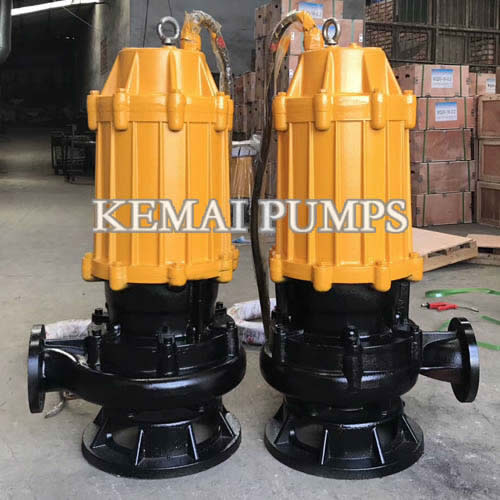

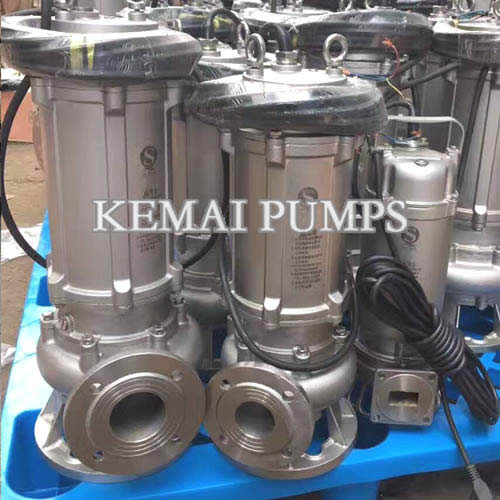

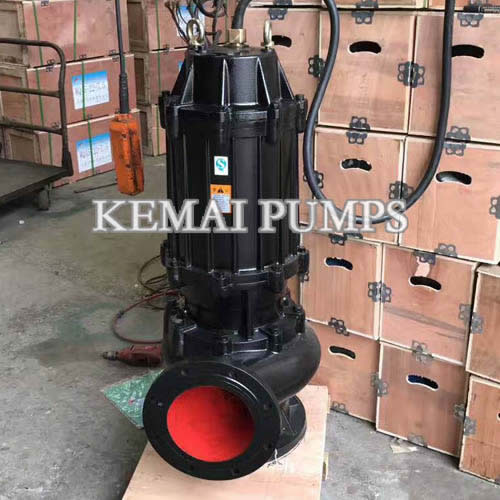

The high-efficiency non submersible sewage pump is a new generation of pump products developed on the basis of the introduction of foreign advanced technology and combined with the characteristics of domestic water pumps. It has remarkable energy saving effect, anti-winding, no clogging, automatic installation and automatic control. . It has a unique effect in discharging solid particles and long fiber waste.WQ submersible pump made of cast iron or stainless steel (SS304 SS316 SS316L).impeller is non-clogging impeller.
WQ Submersible Sewage Pump Product introduction

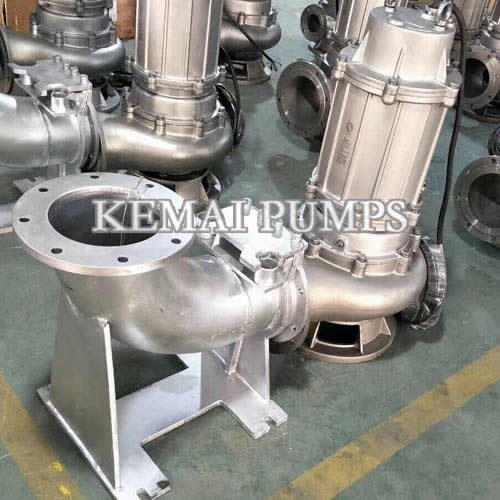

WQ sewage pump is a pump product developed by absorbing domestic and foreign water pump manufacturing experience. It has the characteristics of anti-winding, no clogging, automatic control and easy installation. The coupling rail can be used to install and unload the pump without contacting the sewage. It has a unique effect in discharging solid particles and long fiber waste.
Submersible Sewage Pump Features
1. Adopt unique double-flow non-blocking impeller structure to improve the over-flow capacity and sewage discharge capacity of sewage.
2. The mechanical seal is a double-face mechanical seal, which is in the oil chamber for a long time to ensure the safe and reliable operation of the pump.
3. There is a water leakage detection probe in the pump wiring cavity. When there is water leakage, the probe sends out a signal, and the control system protects the pump. The company can be equipped with fully automatic safety protection control cabinet.
4. The motor stator adopts Class B and Class F insulation, and a thermal protector is built in. When the motor is overloaded and heated, the protector acts in time to implement absolute protection for the pump and motor.
Submersible Sewage Pump Usage
1. Discharge of heavily polluted wastewater from factories and businesses.
2. Drainage system for urban sewage treatment, hospitals and hotels.
3. Sewage drainage station in residential area.
4. The water supply device of the civil air defense system drainage station and the water supply plant.
5. Municipal engineering and construction sites.
6. Attachment to the exploration, mining and power plants.
7. Rural biogas digesters, farmland irrigation, and river pond dredging.
WQ Submersible Sewage Pump Model:
Model | Calibre (mm) |
Flow (m3/h) |
Head (m) |
Motor (kw) |
Speed (r/min) |
25WQ8-22-1.1 | 25 | 8 | 22 | 1.1 | 2825 |
32WQ12-15-1.1 | 32 | 12 | 15 | 1.1 | 2825 |
40WQ15-15-1.5 | 40 | 15 | 15 | 1.5 | 2840 |
40WQ15-30-2.2 | 40 | 15 | 30 | 2.2 | 2840 |
50WQ20-7-0.75 | 50 | 20 | 7 | 0.75 | 1390 |
50WQ10-10-0.75 | 50 | 10 | 10 | 0.75 | 1390 |
50WQ20-15-1.5 | 50 | 20 | 15 | 1.5 | 2840 |
50WQ15-25-2.2 | 50 | 15 | 25 | 2.2 | 2840 |
50WQ18-30-3 | 50 | 18 | 30 | 3 | 2880 |
50WQ25-32-5.5 | 50 | 25 | 32 | 5.5 | 2900 |
50WQ20-40-7.5 | 50 | 20 | 40 | 7.5 | 2900 |
65WQ25-15-2.2 | 65 | 25 | 15 | 2.2 | 2840 |
65WQ37-13-3 | 65 | 37 | 13 | 3 | 2880 |
65WQ25-30-4 | 65 | 25 | 30 | 4 | 2890 |
65WQ30-40-7.5 | 65 | 30 | 40 | 7.5 | 2900 |
65WQ35-50-11 | 65 | 35 | 50 | 11 | 2930 |
65WQ35-60-15 | 65 | 35 | 60 | 15 | 2930 |
80WQ40-7-2.2 | 80 | 40 | 7 | 2.2 | 1420 |
80WQ43-13-3 | 80 | 43 | 13 | 3 | 2880 |
80WQ40-15-4 | 80 | 40 | 15 | 4 | 2890 |
80WQ65-25-7.5 | 80 | 65 | 25 | 7.5 | 2900 |
100WQ80-10-4 | 100 | 80 | 10 | 4 | 1440 |
100WQ110-10-5.5 | 100 | 110 | 10 | 5.5 | 1440 |
100WQ100-15-7.5 | 100 | 100 | 15 | 7.5 | 1440 |
100WQ85-20-7.5 | 100 | 85 | 20 | 7.5 | 1440 |
100WQ100-25-11 | 100 | 100 | 25 | 11 | 1460 |
100WQ100-30-15 | 100 | 100 | 30 | 15 | 1460 |
100WQ100-35-18.5 | 100 | 100 | 35 | 18.5 | 1470 |
125WQ130-15-11 | 125 | 130 | 15 | 11 | 1460 |
125WQ130-20-15 | 125 | 130 | 20 | 15 | 1460 |
150WQ145-9-7.5 | 150 | 145 | 9 | 7.5 | 1440 |
150WQ180-15-15 | 150 | 180 | 15 | 15 | 1460 |
150WQ180-20-18.5 | 150 | 180 | 20 | 18.5 | 1470 |
150WQ180-25-22 | 150 | 180 | 25 | 22 | 1470 |
150WQ130-30-22 | 150 | 130 | 30 | 22 | 1470 |
150WQ180-30-30 | 150 | 180 | 30 | 30 | 1470 |
150WQ200-30-37 | 150 | 200 | 30 | 37 | 1480 |
200WQ300-7-11 | 200 | 300 | 7 | 11 | 970 |
WQ200-250-11-15 | 200 | 250 | 11 | 15 | 970 |
200WQ400-10-22 | 200 | 400 | 10 | 22 | 1470 |
200WQ400-13-30 | 200 | 400 | 13 | 30 | 1470 |
200WQ250-15-18.5 | 200 | 250 | 15 | 18.5 | 1470 |
200WQ300-15-22 | 200 | 300 | 15 | 22 | 1470 |
200WQ250-22-30 | 200 | 250 | 22 | 30 | 1470 |
200WQ350-25-37 | 200 | 350 | 25 | 37 | 1980 |
200WQ400-30-55 | 200 | 400 | 30 | 55 | 1480 |
250WQ600-9-30 | 250 | 600 | 9 | 30 | 980 |
250WQ600-12-37 | 250 | 600 | 12 | 37 | 1480 |
250WQ600-15-45 | 250 | 600 | 15 | 45 | 1480 |
250WQ600-20-55 | 250 | 600 | 20 | 55 | 1480 |
250WQ600-25-75 | 250 | 600 | 25 | 75 | 1480 |
300WQ800-12-45 | 300 | 800 | 12 | 45 | 980 |
300WQ500-15-45 | 300 | 500 | 15 | 45 | 980 |
300WQ800-15-55 | 300 | 800 | 15 | 55 | 980 |
300WQ600-20-55 | 300 | 600 | 20 | 55 | 980 |
300WQ800-20-75 | 300 | 800 | 20 | 75 | 980 |
300WQ950-20-90 | 300 | 950 | 20 | 90 | 980 |
300WQ1000-25-110 | 300 | 1000 | 25 | 110 | 980 |
350WQ1100-10-55 | 350 | 1100 | 10 | 55 | 980 |
350WQ1500-15-90 | 350 | 1500 | 15 | 90 | 980 |
350WQ1200-18-90 | 350 | 1200 | 18 | 90 | 980 |
350WQ1100-28-132 | 350 | 1100 | 28 | 132 | 740 |
350WQ1000-36-160 | 350 | 1000 | 36 | 160 | 740 |
400WQ1500-10-75 | 400 | 1500 | 10 | 75 | 980 |
400WQ2000-15-132 | 400 | 2000 | 15 | 132 | 740 |
400WQ1700-22-160 | 400 | 1700 | 22 | 160 | 740 |
400WQ1500-26-160 | 400 | 1500 | 26 | 160 | 740 |
400WQ1700-30-200 | 400 | 1700 | 30 | 200 | 740 |
400WQ1800-32-250 | 400 | 1800 | 32 | 250 | 740 |
500WQ2500-10-110 | 500 | 2500 | 10 | 110 | 740 |
500WQ2600-15-160 | 500 | 2600 | 15 | 160 | 740 |
500WQ2400-22-220 | 500 | 2400 | 22 | 220 | 740 |
500WQ2600-24-250 | 500 | 2600 | 24 | 250 | 740 |
