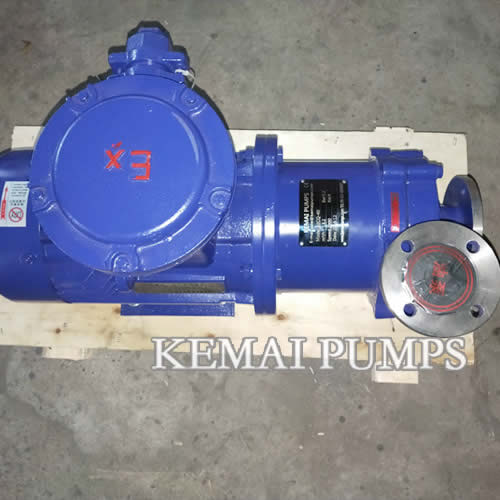

Stainless Steel Magnetic Drive Pump CQ series
Stainless Steel Magnetic Drive Pump CQ series
Product Description
CQ series stainless steel magnetic drive pump is composed of pump, magnetic drive coupling and motor.Mainly used transfer acid, alkali, oil, electroplating solution.
No. | (Model) | (Rev) =2900r/min (Medium density)=1000kg/m ³ | ||||||
Flow
(m³/h) |
Pump head
(m) |
Inlet
(mm) |
Outlet
(mm) |
Npsh
(m) |
Power
(kw) |
Weight
(kg) |
||

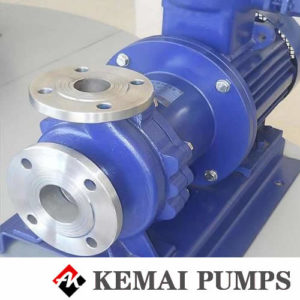

1 | CQB16-12-50 | 0.5 | 2 | φ16 | φ12 | 9.0 | 0.025 | 5 |
0.8 | 1.5 | |||||||
2 | CQB15-15-65 | 0.8 | 3.5 | φ15 | φ15 | 6.0 | 0.18 | 7 |
1 | 2.8 | |||||||
3 | CQB20-15-75 | 1.6 | 7 | φ20 | φ15 | 6.0 | 0.18 | 8 |
1.8 | 6 | |||||||
4 | CQB25-20-100 | 1 | 10 | φ25 | φ20 | 6.0 | 0.37 | 12 |
2.5 | 11 | |||||||
5 | CQB32-20-110 | 4 | 13.5 | φ32 | φ20 | 6.0 | 0.55 | 18 |
5.5 | 13 | |||||||
6 | CQB32-20-125 | 2.5 | 21 | φ32 | φ20 | 6.0 | 0.75 | 20 |
3.6 | 20 | |||||||
7 | CQB32-20-160 | 2.5 | 33 | φ32 | φ20 | 5.0 | 1.5 | 50 |
3.6 | 32 | |||||||
8 | CQB40-25-120 | 4 | 15.5 | φ40 | φ25 | 5.0 | 0.75 | 35 |
6.3 | 15 | |||||||
8 | 12 | |||||||
9 | CQB40-25-125 | 4 | 22 | φ40 | φ25 | 4.5 | 1.1 | 54 |
6.3 | 20 | |||||||
8 | 16 | |||||||
10 | CQB40-25-160 | 4 | 33 | φ65 | φ25 | 5.0 | 2.2/3 | 55 |
6.3 | 32 | |||||||
8 | 29 | |||||||
11 | CQB40-25-200 | 4 | 51 | φ40 | φ40 | 3.7 | 4 | 40 |
6.3 | 50 | |||||||
8 | 48 | |||||||
12 | CQB40-40-125 | 4 | 19 | φ40 | φ40 | 3.7 | 1.1 | 40 |
6.3 | 17.5 | |||||||
8 | 15 | |||||||
13 | CQB50-32-125 | 7 | 22 | φ50 | φ32 | 3.5 | 1.5 | 45 |
12.5 | 20 | |||||||
15 | 19 | |||||||
14 | CQB50-32-160 | 7 | 33 | φ50 | φ32 | 3.5 | 4 | 80 |
12.5 | 32 | |||||||
15 | 29 | |||||||
15 | CQB50-32-200 | 7 | 52 | φ50 | φ32 | 3.5 | 7.5 | 150 |
12.5 | 50 | |||||||
15 | 45 | |||||||
16 | CQB65-50-125 | 15 | 22 | φ65 | φ50 | 4.0 | 4 | 100 |
20 | 20 | |||||||
25 | 15 | |||||||
17 | CQB65-50-150 | 15 | 27 | φ65 | φ50 | 4.0 | 4 | 100 |
20 | 25 | |||||||
25 | 20 | |||||||
18 | CQB65-50-160 | 15 | 33 | φ65 | φ50 | 4.0 | 5.5 | 120 |
20 | 32 | |||||||
25 | 28 | |||||||
19 | CQB65-50-160A | 10 | 35 | φ65 | φ50 | 4.0 | 4 | 90 |
17.5 | 32 | |||||||
19 | 25 | |||||||
20 | CQB65-50-180 | 15 | 40 | φ65 | φ50 | 5.5 | 5.5 | 120 |
20 | 38 | |||||||
25 | 32 | |||||||
21 | CQB65-40-200 | 15 | 51 | φ65 | φ40 | 4.0 | 11 | 250 |
20 | 50 | |||||||
25 | 45 | |||||||
22 | CQB80-65-125 | 35 | 22 | φ80 | φ65 | 4.0 | 7.5 | 160 |
50 | 20 | |||||||
60 | 15 | |||||||
23 | CQB80-65-160 | 35 | 34 | φ80 | φ65 | 4.0 | 11 | 180 |
50 | 32 | |||||||
60 | 28 | |||||||
24 | CQB80-50-200 | 35 | 51 | φ80 | φ50 | 4.0 | 18.5 | 195 |
50 | 50 | |||||||
60 | 45 | |||||||
25 | CQB100-80-125 | 65 | 22 | φ100 | φ80 | 5.0 | 11 | 180 |
100 | 20 | |||||||
120 | 18 | |||||||
26 | CQB100-80-160 | 70 | 34 | φ100 | φ80 | 5.0 | 18.5 | 220 |
100 | 32 | |||||||
120 | 28 |
