Product Description

LY/LYO/LYG/LYF Stainless Steel Long Shaft Submerged Centrifugal Pump, suitable for conveying all kinds of corrosive liquid and clean water, conveying all kinds of sewage containing particles or fibers.The temperature range of LY/LYO conveying medium is -20℃~+120℃, LYG conveying medium can reach +400℃, and the working pressure can reach 1.6mpa.

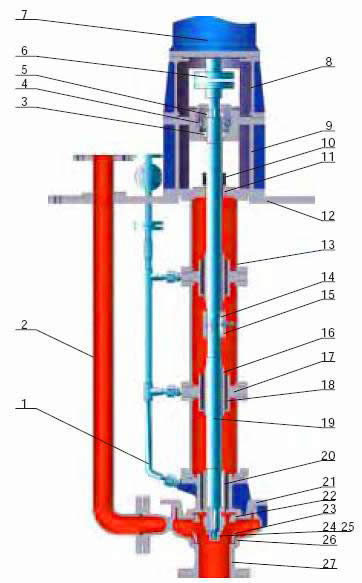

Stainless Steel Long Shaft Submerged Centrifugal Pump Structure:



































Stainless Steel Long Shaft Submerged Centrifugal Pump Type Meaning:

LY50-250.

LY– long shaft chemical pump

50– outlet diameter mm

250– nominal diameter of impeller mm

Stainless Steel Long Shaft Submerged Centrifugal Pump Performance Parameters:

Model	Impeller	Flow	Head	Revolution  n=2950r/min				Flow	Head	Revolution  n=1450r/min
				Proportion γ=1		Proportion γ=1.35				Proportion γ=1		Proportion γ=1.35
		m3/h	m	KW	Motor model	KW	Motor model	m3/h	m	KW	Motor model	KW	Motor model
LY25-200	A	11.5	47	5.5	Y132S1-2	7.5	Y132S2-2	5.8	11	1.1	Y90S-4	1.1	Y90S-4
	B	10.5	40	4	Y112M-2	5.5	Y132S1-2	5.4	10	1.1	Y90S-4	1.1	Y90S-4
	C	9	34	3	Y100L-2	4	Y112M-2	4.6	7.5	1.1	Y90S-4	1.1	Y90S-4
	D	7.5	26	2.2	Y90L-2	3	Y100L-2	4	5.5	1.1	Y90S-4	1.1	Y90S-4
LY40-160	A	28	31	5.5	Y132S1-2	7.5	Y132S2-2	14	7	1.1	Y90S-4	1.1	Y90S-4
	B	25.6	27	5.5	Y132S1-2	7.5	Y132S2-2	13	6	1.1	Y90S-4	1.1	Y90S-4
	C	22	20	4	Y112M-2	5.5	Y132S1-2	11	4.5	1.1	Y90S-4	1.1	Y90S-4
	D	20	14	2.2	Y90L-2	3	Y100L-2	9.5	3.5	1.1	Y90S-4	1.1	Y90S-4
LY40-200	A	29	51	11	Y160M1-2	15	Y160M2-2	14.5	12	1.5	Y90L-4	2.2	Y100L1-4
	B	26	45	7.5	Y132S2-2	11	Y160M2-2	13	10.5	1.1	Y90S-4	1.5	Y90L-4
	C	22	37	7.5	Y132S2-2	7.5	Y132S2-2	11.5	8	1.1	Y90S-4	1.1	Y90S-4
	D	18	18	4	Y112M-2	5.5	Y132S1-2	9.5	6	1.1	Y90S-4	1.1	Y90S-4
LY40-250	A	32	76	18.5	Y160L-2	22	Y180M-2	16	18.5	3	Y100L2-4	4	Y112M-4
	B	30	70	15	Y160M1-2	18.5	Y160L-2	15	17	2.2	Y100L1-4	3	Y100L2-4
	C	24	58	11	Y160M1-2	15	Y160M2-2	12.5	13	1.5	Y90L-4	2.2	Y100L1-4
	D	21	45	7.5	Y132S2-2	11	Y160M1-2	10.5	10	1.1	Y90S-4	1.5	Y90L-4
LY50-160	A	50	32	11	Y160M1-2	15	Y160M2-2	25	7.5	1.5	Y90L-4	2.2	Y100L1-4
	B	45	27	7.5	Y132S2-2	11	Y160M1-2	22.5	6	1.5	Y90L-4	1.5	Y90L-4
	C	38	20	5.5	Y132S1-2	7.5	Y132S2-2	19	4.5	1.1	Y90S-4	1.1	Y90S-4
	D	31	15	3	Y100L-2	4	Y112M-2	16.5	3	1.1	Y90S-4	1.1	Y90S-4
LY50-200	A	62	50	18.5	Y160L-2	22	Y180M-2	31	12	3	Y100L2-4	3	Y100L2-4
	B	56	44	15	Y160M2-2	18.5	Y160L-2	28.5	10.5	2.2	Y100L1-4	3	Y100L2-4
	C	49	35	11	Y160M1-2	15	Y160M2-2	25	8	1.5	Y90L-4	2.2	Y100L1-4
	D	43	26	7.5	Y132S2-2	11	Y160M1-2	22	6	1.1	Y90S-4	1.5	Y90L-4
LY50-250	A	70	80	30	Y200L1-2	37	Y200L2-2	35	19	4	Y112M-4	5.5	Y132S-4
	B	66	73	30	Y200L1-2	37	Y200L2-2	33	17.5	4	Y112M-4	5.5	Y132S-4
	C	60	58	22	Y180M-2	30	Y200L1-2	30	14	3	Y100L2-4	4	Y112M-4
	D	50	43	15	Y160M2-2	18.5	Y160L-2	26	10	2.2	Y100L1-4	3	Y100L2-4
Model	Impeller	Flow	Head	Revolution  n=2950r/min				Flow	Head	Revolution  n=1450r/min
				Proportion γ=1		Proportion γ=1.35				Proportion γ=1		Proportion γ=1.35
		m3/h	m	KW	Motor model	KW	Motor model	m3/h	m	KW	Motor model	KW	Motor model
LY50-315	A							44	27	11	Y160M-4	11	Y160M-4
	B							40	23	7.5	Y132M-4	11	Y160M-4
	C							35	18	5.5	Y132S-4	7.5	Y132M-4
	D							30	13	3	Y100L2-4	4	Y112M-4
LY80-160	A	94	30	15	Y160M2-2	18.5	Y160L-2	47	7	2.2	Y100L1-4	3	Y100L2-4
	B	85	26	11	Y160M1-2	15	Y160M2-2	42	6	2.2	Y100L1-4	2.2	Y100L1-4
	C	76	21	11	Y160M1-2	11	Y160M1-2	38	4.5	1.5	Y90L-4	2.2	Y100L1-4
	D	66	15	5.5	Y132S1-2	7.5	Y132S2-2	34	3	1.1	Y90S-4	1.1	Y90S-4
LY80-200	A	103	52	30	Y200L1-2	37	Y200L2-2	51	12.5	4	Y112M-4	5.5	Y132S-4
	B	95	46	22	Y180M-2	30	Y200L1-2	47	11	3	Y100L2-4	4	Y112M-4
	C	84	36	15	Y160M2-2	22	Y180M-2	40	8.5	2.2	Y100L1-4	3	Y100L2-4
	D	70	28	11	Y160M1-2	15	Y160M2-2	36	6.5	1.5	Y90L-4	2.2	Y100L1-4
LY80-250	A	127	80	45	Y225M-2	75	Y280S-2	64	19	7.5	Y132M-4	11	Y160M-4
	B	120	74	45	Y225M-2	55	Y250M-2	60	18	7.5	Y132M-4	7.5	Y132M-4
	C	105	57	30	Y200L1-2	45	Y225M-2	52	13.5	4	Y112M-4	5.5	Y132S-4
	D	87	43	22	Y180M-2	30	Y200L1-2	46	10	3	Y100L2-4	4	Y112M-4
LY80-315	A							70	32	15	Y160L-4	18.5	Y180M-4
	B							66	29	11	Y160M-4	15	Y160L-4
	C							56	23	11	Y160M-4	11	Y160M-4
	D							45	17	5.5	Y132S-4	7.5	Y132M-4
LY100-160	A	162	27	22	Y180M-2	30	Y200L1-2	81	6.2	3	Y100L2-4	4	Y112M-4
	B	150	22	15	Y160M2-2	22	Y180M-2	73	5	2.2	Y100L1-4	3	Y100L2-4
	C	130	15	11	Y160M1-2	15	Y160M2-2	63	3.3	1.5	Y90L-4	2.2	Y100L1-4
	D	110	10	7.5	Y132S2-2	11	Y160M1-2	55	2	1.1	Y90S-4	1.5	Y90L-4
LY100-200	A	193	48	45	Y225M-2	55	Y250M-2	95	11.5	5.5	Y132S-4	7.5	Y132M-4
	B	180	42	37	Y200L2-2	45	Y225M-2	90	9.5	5.5	Y132S-4	7.5	Y132M-4
	C	155	33	30	Y200L1-2	37	Y200L2-2	80	7.5	4	Y112M-4	5.5	Y132S-4
	D	135	24	18.5	Y160L-2	30	Y200L1-2	70	5	3	Y100L2-4	3	Y100L2-4
Model	Impeller	Flow	Head	Revolution  n=2950r/min				Flow	Head	Revolution  n=1450r/min
				Proportion γ=1		Proportion γ=1.35				Proportion γ=1		Proportion γ=1.35
		m3/h	m	KW	Motor model	KW	Motor model	m3/h	m	KW	Motor model	KW	Motor model
LY100-250	A	230	77	75	Y280S-2	90	Y280M-2	115	19	11	Y160M-4	15	Y160L-4
	B	218	71	75	Y280S-2	90	Y280M-2	110	17	11	Y160M-4	11	Y160M-4
	C	190	56	45	Y225M-2	75	Y280S-2	100	13	7.5	Y132M-4	11	Y160M-4
	D	170	42	37	Y200L2-2	45	Y225M-2	90	9	5.5	Y132S-4	7.5	Y132M-4
LY100-315	A							125	30	18.5	Y180M-4	30	Y200L-4
	B							119	28	18.5	Y180M-4	22	Y180L-4
	C							104	23	15	Y160L-4	18.5	Y180M-4
	D							86	16.5	11	Y160M-4	11	Y160M-4
LY150-200	A							160	10	7.5	Y132M-4	11	Y160M-4
	B							152	8.5	7.5	Y132M-4	11	Y160M-4
	C							140	6	5.5	Y132S-4	7.5	Y132M-4
	D							123	4	3	Y100L2-4	4	Y112M-4
LY150-250	A							195	17.5	15	Y160L-4	22	Y180L-4
	B							180	15	15	Y160L-4	18.5	Y180M-4
	C							160	10.5	11	Y160M-4	11	Y160M-4
LY150-315	A							220	31	30	Y200L-4	45	Y225M-4
	B							210	29	30	Y200L-4	37	Y225S-4
	C							180	23	22	Y180L-4	30	Y200L-4
	D							150	16	15	Y160L-4	18.5	Y180M-4
LY200-250	A							305	16.5	22	Y180L-4	45	Y225M-4
	B							290	15	18.5	Y180M-4	37	Y225S-4
	C							260	11	15	Y160L-4	30	Y200L-4
	D							240	7	11	Y160M-4	18.5	Y180M-4
LY200-315	A							350	29	45	Y225M-4	55	Y250M-4
	B							340	28	37	Y225S-4	55	Y250M-4
	C							300	21	30	Y200L-4	37	Y225S-4
	D							250	14	18.5	Y180M-4	22	Y180L-4
