Product Description

Sanitary centrifugal pump USE:

I. Standard design

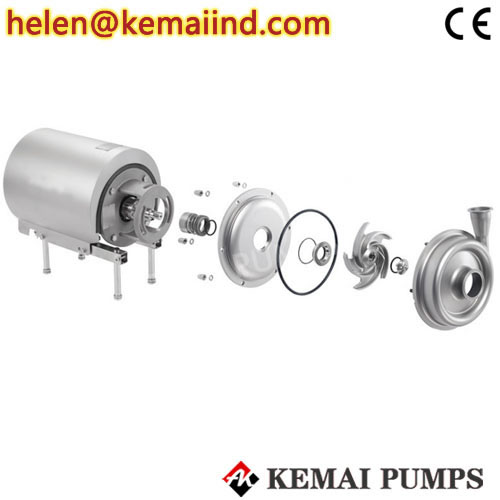

Sanitary centrifugal pump consists of the following parts: standard motor, impeller, pump shell, sanitary mechanical seal.It features a professional cleaning system (CIP) design with no dead corners and a washable seal, a stainless steel hood to protect the motor, and four adjustable stainless steel legs.
Ii. Product application
Sanitary centrifugal pump can be widely used for the transportation of various liquid materials.
Drugs: Infusion, distilled water, high pure water, Tai Granules (3-6 mm) liquid of Traditional Chinese medicine, leach liquid;
Cosmetics: dyes, alcohol, essential oils;
Dairy products: whey, cream, milk, sugar liquid;
Beverage: alcohol, liquor, beer, malt sweat, fermentation liquor, fruit juice beverage, beverage with granules;
Others: candy industry, baking industry, chemical industry, etc.
It can not only transport ordinary low, medium viscosity solution, can also transport platform suspension or corrosive solution.

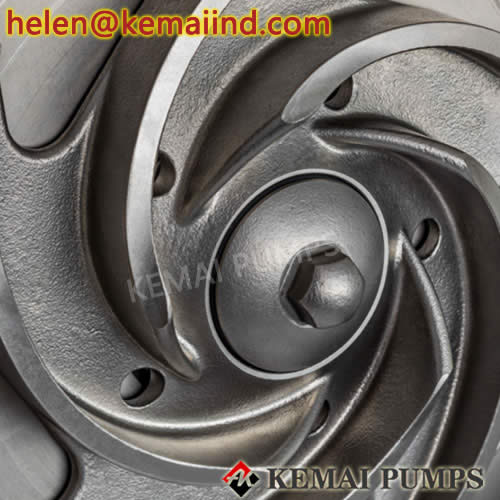

Sanitary centrifugal pump in the form of single – stage, single – suction, open impeller.The pump casing and impeller are carefully designed to reduce the resistance and completely eliminate the sanitary dead zone.Because of its special
Structure, so improve the flow rate of liquid in the pump, thereby improving the overall performance of the pump, and easy to clean, with excellent sanitation performance.It can meet the sanitary and flexible treatment requirements of the products and has chemical corrosion resistance.

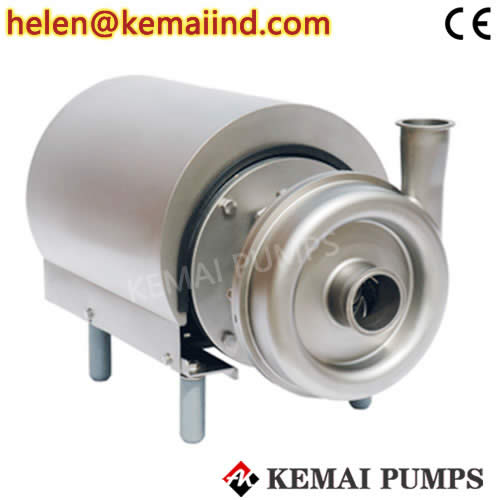

Sanitary centrifugal pump

material
Material: AISI304L stainless steel
Other materials: AISI304L stainless steel
Outer surface: Abrasive matte
Inner surface: polished Rao0.4
Superliquid sealing material: EPDM ethylene propylene rubber
