Product Description

Performance range of RY heat conduction pump

• The flow rate is 1-500m cubed per hour;

• Head 10-125m;

• Temperature：＞350℃

  RY series of heat conduction oil pump by CHINA KEMAI PUMPS CO.,LTD of product design improvements repeatedly, through practical experiments have proved that my company a new generation of RY series of heat conduction oil pump in the normal use will be able to put an end to the medium leakage phenomenon!

  Especially for the permeable media such as: similar to the medium of nine – carbon oil.

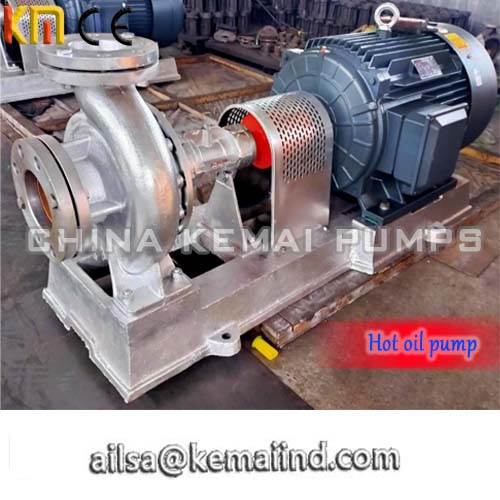

  Structure introduction of RY heat conduction pump

  1. The RY type heat pump is a single-stage cantilever structure, which is divided into foot support and center support. The inlet of the pump is axial suction and the outlet is vertical upward.
  2. Pump and drive motor are mounted on the same base by elastic coupling.
  3. No cooling system is required for the whole unit.
  4. RY series heat conduction pump is mainly composed of shell, rotor, bearing, seal and other parts. It adopts packing seal structure and adds heat resistant oil seal, which ACTS as auxiliary seal.
  5. The pump and motor are connected by three – claw elastic coupling.
  6. RY series of heat conduction oil pump on the pump from the design changed the traditional structure of hot oil pump, the cooling system of using natural cooling, reduce the volume of the pump, the structure is simple, save operating cost, safe and reliable.


     Hot oil pumps flow,head and motor power data sheet:

     Model	Flow m3/h	Head m	Speed r/min	Motor KW
     15-15-100	3	10	2800	0.75
     15-15-100A	2	10	2800	0.55
     15-15-100B	1	10	2800	0.37
     20-20-100	1	10	2800	0.37
     20-20-125	1.5	22	2800	0.75
     40-25-160	10	28	2900	2.2
     25-25-160	3	27	2900	1.5
     32-32-160	6	28	2900	1.5
     50-32-160	12.5	30	2900	3.0
     50-32-200	18	40	2900	5.5
     50-32-200A	16	32	2900	4
     50-32-250	12.5	80	2900	11
     65-50-160	20	32	2900	5.5
     65-40-200	30	48	2900	7.5
     65-40-200A	25	35	2900	5.5
     65-40-250	25	80	2900	15
     65-40-250A	20	51	2900	7.5
     65-40-315	25	125	2900	30
     65-40-315A	22.5	100	2900	22
     80-50-200	50	50	2900	15
     80-50-200A	45	40	2900	11
     80-50-200B	40	32	2900	7.5
     80-50-250	50	80	2900	22
     80-50-250A	43	60	2900	15
     80-50-315	50	125	2900	45
     80-50-315A	45	100	2900	30
     100-65-200	100	50	2900	22
     100-65-200A	94	44	2900	22
     100-65-200B	87	38	2900	15
     100-65-200C	80	32	2900	15
     100-65-250	100	80	2900	37
     100-65-250A	95	72	2900	37
     100-65-250B	90	65	2900	30
     100-65-250C	85	50	2900	30
     100-65-315	100	125	2900	75
     100-65-315A	95	113	2900	55
     100-65-315B	90	100	2900	55
     100-65-315C	82	84	2900	45
     125-100-200	200	50	2900	45
     125-100-200A	178	40	2900	37
     125-100-250	200	70	2900	55
     125-100-250A	190	63	2900	55
     125-100-250B	180	57	2900	45
     125-100-250C	170	51	2900	45
     125-100-250D	150	70	2900	45
     150-150-200	350	50	2900	75
     150-150-200A	313	40	2900	55
     200-150-400	350	50	1450	75
     200-150-400A	330	45	1450	75
     250-200-400	500	50	1480	110
     250-200-500	500	80	1480	160
     250-200-500A	400	50	1480	90
