Pneumatic Double Diaphragm Pump
Pneumatic Double Diaphragm Pump

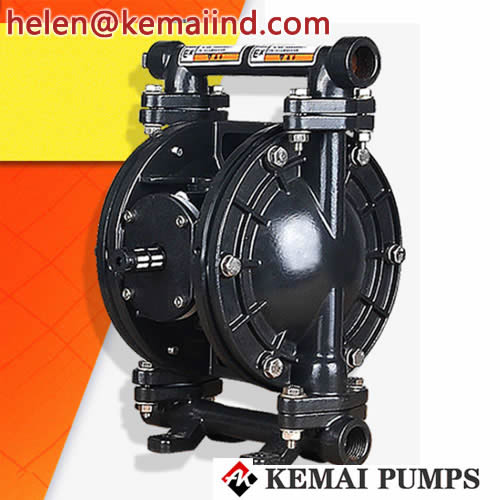

Product Description

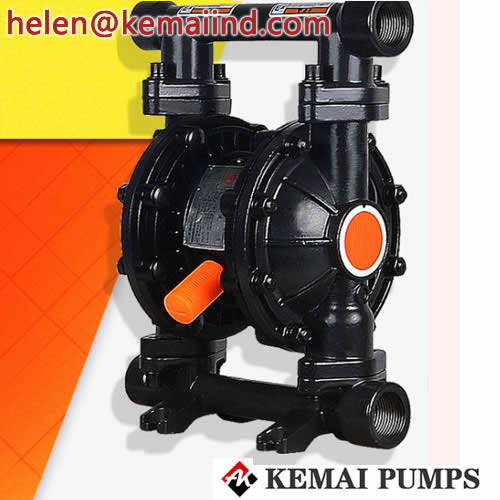

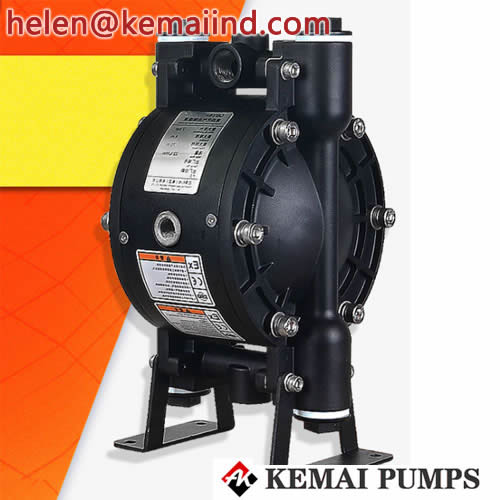

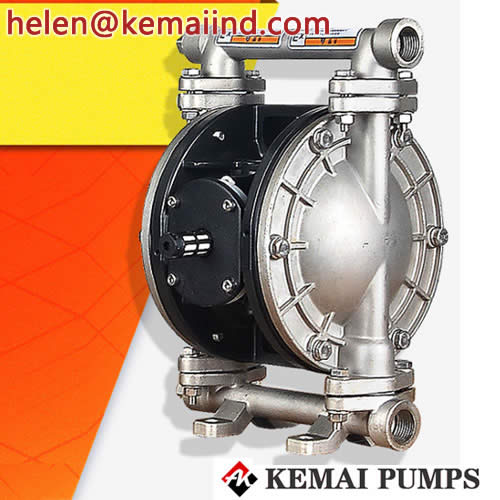

Pneumatic Double Diaphragm Pump material:
Aluminum alloy/Stainless steel/Cast steel/PP/Fluoroplastics/SG iron/PTFE
Pneumatic Double Diaphragm Pump:
1. Explosion-proof, zero leak, simple operation.
2. Idling capability,Self suction, No complex control.
3. Diversity of material,no rotating parts,applicable to various erosive situations.
4. Diaphragm, ball and ball seat adopt imported materials with longer service life.
5. Modularization of main valve and air motor. No broken, easy to disassemble and repair.
AODD Pumps material:Aluminum alloy/Stainless steel/Cast steel/PP/Fluoroplastics/SG iron/PTFE
Product Marking Function Description:
A:Simple structure,reliable connection ,easy assembly and disassembly.
B:Modular design,low air consumption,no dead spots and no need lubrication.
C:Enhanced the chamber strength,has long_term durability.
D:Bolts connection design,good seal.
E:Adopt special grinding machine to process in high roundness and good seal.
F:Accurately calculatethe diaphragm moving distance to reduce the force to diaphragm.
The products, using simple and operating convenient, are widely used in various industries,
such as petroleum, metallurgy, chemical engineering, mine, coating materials, ceramics,
food & drinks, pharmacy, printing, paper making, electron, textile, architecture, furnishing,
environmental friendly, water treatment, automotive, shipbuilding and so on.
Model | Calibre
SIZE |
Max.Flow
(L/min) |
Max.Head
(M) |
Outlet pressure
(bar) |
Air inlet size
|
AODD-10 | 10 (3/8″) | 22 | 70 | 7 | 1/4″ |
AODD-15 | 15 (1/2″) | 22 | 70 | 7 | 1/4″ |
AODD-20 | 20 (3/4″) | 57 | 70 | 7 | 1/4″ |
AODD-25 | 25 (1″) | 57 | 70 | 7 | 1/4″ |
AODD-25A | 25 (1″) | 116 | 84 | 8.4 | 1/2″ |
AODD-32 | 32 (1.2″) | 151 | 84 | 8.4 | 1/2″ |
AODD-40 | 40 (1.5″) | 151 | 84 | 8.4 | 1/2″ |
AODD-40A | 40 (1.5″) | 378.5 | 84 | 8.4 | 1/2″ |
AODD-50 | 50 (2″) | 378.5 | 84 | 8.4 | 1/2″ |
AODD-65 | 65 (2.5″) | 378.5 | 84 | 8.4 | 1/2″ |
AODD-50A | 50 (2″) | 586 | 84 | 8.4 | 1/2″ |
AODD-80 | 80 (3″) | 586 | 84 | 8.4 | 1/2″ |
AODD-100 | 100 (4″) | 586 | 84 | 8.4 | 1/2″ |
AODD-80A | 80 (3″) | 1041 | 84 | 8.4 | 3/4″ |
AODD-125 | 125 (5″) | 1041 | 84 | 8.4 | 3/4″ |
