Product Description

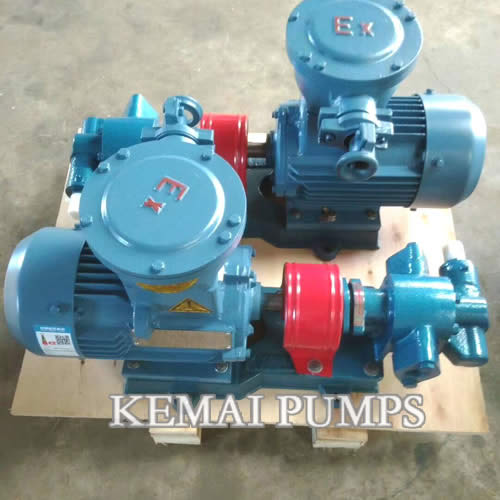

KCB 55 gear pump inlet and outlet is 1″(25mm), Flow:55L/min(3.3m3/h),Head:0.33MPA,With 1.5KW-1400RPM; Material: cast iron or stainless steel. Seal: mechanical seal or gland seal.

KCB 200 gear pump inlet and outlet is 2″(50mm),Flow:200L/min(12m3/h),Head:0.33MPA,With 4KW-1440RPM; Material: cast iron or stainless steel. Seal: mechanical seal or gland seal.

KCB 300 gear pump inlet and outlet is 70mm,Flow:300L/min(18m3/h),Head:0.36MPA,With 5.5KW-960RPM; Material: cast iron or stainless steel. Seal: mechanical seal or gland seal.

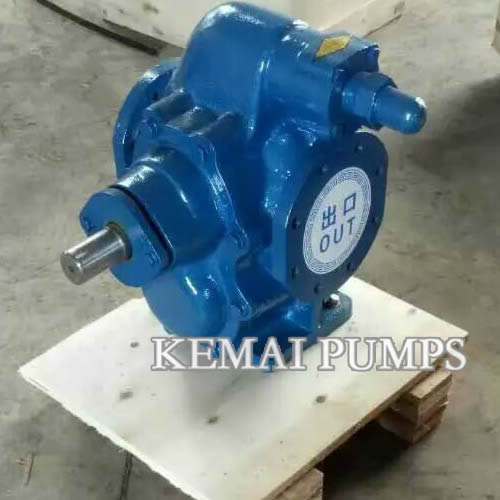

KCB 633 gear pump inlet and outlet is 4″(100mm),Flow:633L/min(38m3/h),Head:0.28MPA,With 11KW-960RPM; Material: cast iron or stainless steel. Seal: mechanical seal or gland seal.

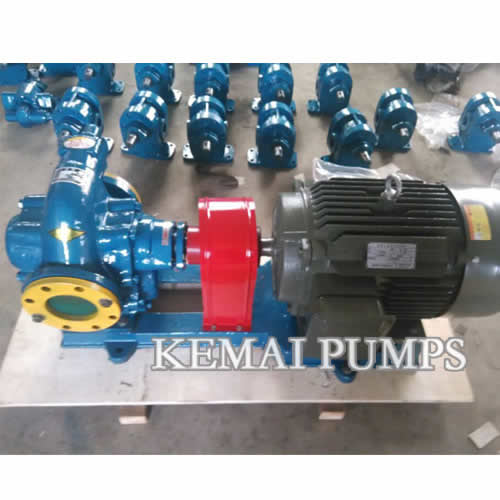

KCB 960 gear pump inlet and outlet is 4″(100mm),Flow:960L/min(58m3/h),Head:0.28MPA,With 22KW-1450RPM; Material: cast iron or stainless steel. Seal: mechanical seal or gland seal.

kcb gear pump applicable temperature is less than 120 degrees Celsius. If is high-temperature liquid, the pump material needs to be changed, and the pump assembly needs to change some sizes.If the liquid is corrosive, please choose stainless steel gear pump, which will extend the service life of the pump.

This KCB model gear pump use for transfer viscosity lower than 1500cst lubricating oil, edible oil, mechanical oil, gear oil, etc.
