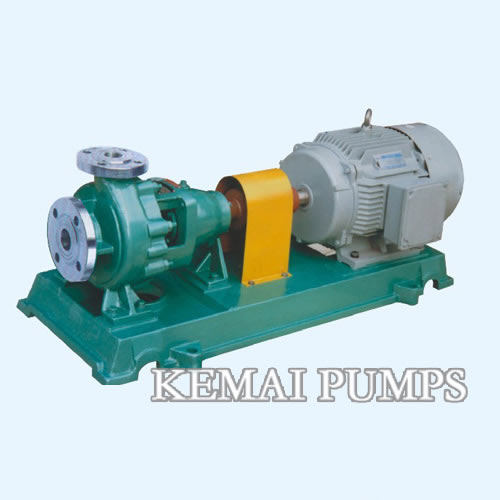

IH Chemical Pump For Corrosive Liquid
IH Chemical Pump For Corrosive Liquid
Product Description
IH chemical pump is single level, single, cantilever chemical centrifugal pump. Conveyance medium contact flow components made of 1Cr18Ni9Ti materials. It according to international standard ISO2858 design. Used for transport not containing solids, corrosive liquid.
Operating temperature: -40℃~140℃
Speed:2900RPM 1450RPM
Model Explanation
IH100-80-160
IH:Chemical Centrifugal Pump
100:Inlet
80:Outlet
Serial number | (Model) | (Rev) =2900r/min (Medium density)=1000kg/m³ | ||||||
Flow
(m³/h) |
Pump head (m) |
η (%) |
Inlet (mm) |
Outlet
(mm) |
Npsh
(m) |
Power
(kw) |
||
1 | IH50-32-125 | 10 | 22 | 52 | φ50 | φ32 | 3.0 | 2.2 |
12.5 | 20 | |||||||
15 | 18.5 | |||||||
2 | IH50-32-160 | 10 | 33 | 46 | φ50 | φ32 | 3.5 | 4 |
12.5 | 32 | |||||||
15 | 28 | |||||||
3 | IH50-32-200 | 10 | 52 | 40 | φ50 | φ32 | 3.5 | 7.5 |
12.5 | 50 | |||||||
15 | 48 | |||||||
4 | IH50-32-250 | 10 | 82 | 38 | φ50 | φ32 | 3.5 | 11 |
12.5 | 80 | |||||||
15 | 78 | |||||||
5 | IH65-50-125 | 15 | 22 | 63 | φ65 | φ50 | 3.5 | 3 |
25 | 20 | |||||||
30 | 16 | |||||||
Serial number | (Model) | (Rev) =2900r/min (Medium density)=1000kg/m³ | ||||||
Flow
(m³/h) |
Pump head
(m) |
η
(%) |
Inlet
(mm) |
Outlet
(mm) |
Npsh
(m) |
Power
(kw) |
||
6 | IH65-50-160 | 15 | 33 | 58 | φ65 | φ50 | 3.5 | 5.5 |
25 | 32 | |||||||
30 | 28 | |||||||
7 | IH65-40-200 | 15 | 51 | 53 | φ65 | φ40 | 3.5 | 11 |
25 | 50 | |||||||
35 | 45 | |||||||
8 | IH65-40-250 | 15 | 82 | 49 | φ65 | φ40 | 3.5 | 18.5 |
25 | 80 | |||||||
35 | 72 | |||||||
9 | IH80-65-125 | 35 | 22 | 67 | φ80 | φ65 | 4.0 | 5.5 |
50 | 20 | |||||||
60 | 18 | |||||||
10 | IH80-65-160 | 35 | 33 | 65 | φ80 | φ65 | 4.0 | 11 |
50 | 32 | |||||||
60 | 27 | |||||||
11 | IH80-50-200 | 35 | 52 | 63 | φ80 | φ50 | 4.0 | 15 |
50 | 50 | |||||||
60 | 45 | |||||||
12 | IH80-50-250 | 35 | 82 | 57 | φ80 | φ50 | 4.5 | 30 |
50 | 80 | |||||||
60 | 75 | |||||||
13 | IH100-80-125 | 65 | 22 | 73 | φ100 | φ80 | 5.0 | 11 |
100 | 20 | |||||||
120 | 18 | |||||||
14 | IH100-80-160 | 65 | 35 | 71 | φ100 | φ65 | 5.0 | 15 |
100 | 32 | |||||||
120 | 26 | |||||||
15 | IH100-65-200 | 65 | 51 | 66 | φ100 | φ65 | 5.0 | 30 |
100 | 50 | |||||||
120 | 43 | |||||||
16 | IH100-65-250 | 65 | 82 | 64 | φ125 | φ80 | 5.0 | 55 |
100 | 80 | |||||||
120 | 65 | |||||||
17 | IH125-80-160 | 100 | 38 | 72 | φ125 | φ100 | 6.0 | 30 |
160 | 32 | |||||||
180 | 26 | |||||||
18 | IH125-100-200 | 120 | 55 | 67 | φ100 | φ80 | 5.0 | 55 |
200 | 50 | |||||||
220 | 45 |
