Product Description

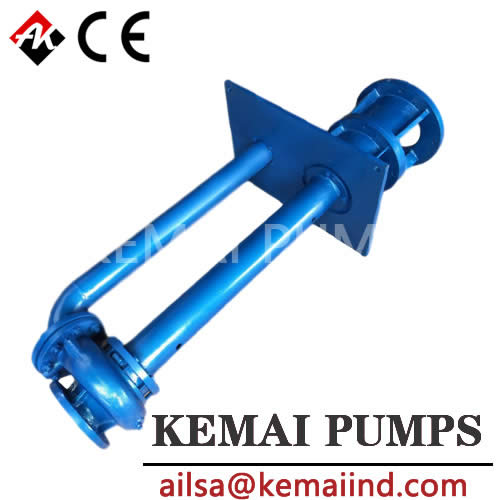

FYL vertical long shaft centrifugal pump overview:

FYL vertical long shaft centrifugal pump is a vertical centrifugal pump, suitable for chemical, petroleum, electric power, metallurgy, pharmaceutical, papermaking, environmental protection and other industries, can be used for the corrosive liquid, containing a certain amount of solid particles liquid transport.KEMAI pump industry of China selects the most excellent hydraulic model in China to be designed. High efficiency, energy saving and stability are the biggest advantages of FYL vertical long-shaft centrifugal pump.

FYL vertical long shaft centrifugal pump features:

1. From the motor to the pump end, the pump is counterclockwise.

2, the pump adopts a long shaft structure, the insertion depth can reach 10 meters, the shaft connection structure is safe and reliable, easy to disassemble.

3. When the pump starts, the impeller is immersed in the medium, so it is easy to start, and there is no exhaust pumping problem.

4, rotor parts can be axial adjustment, and the use of multi-point support, stable and reliable pump operation, can be used to lengthen suction pipe, increase the insertion depth, make full use of its own suction range, rotor length is shortened, rigidity enhancement, life extension, economic and reasonable.

5. Sliding bearings can be lubricated by external cooling or self-cooling.

6. The outlet flange is a semi-movable flange for easy connection.

7. Low speed motor, low noise, stable operation and long service life.

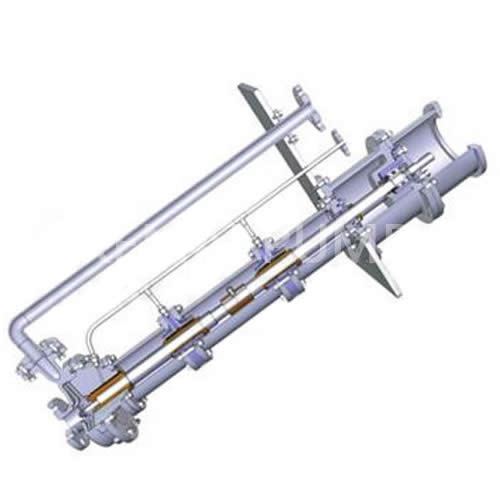

FYL vertical long shaft centrifugal pump structure Schematic diagram :
