Product Description

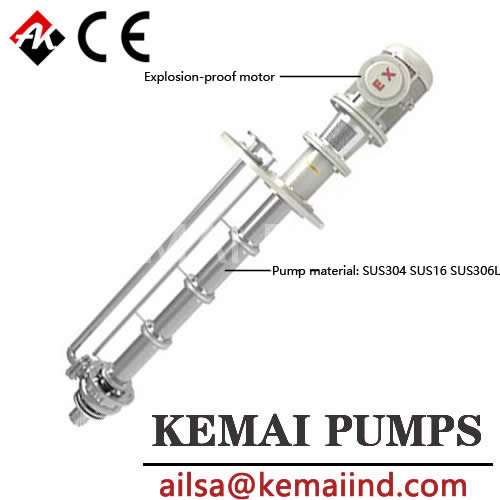

FY Explosion-Proof Stainless Steel Submerged Pump Summary：

This pump is a single-stage single-suction long axis type Submerged centrifugal pump, tag, rated performance point and flange size equivalent international standard ISO2858 being adopted, the technical conditions used to ISO5199.Compared with the original FY corrosion Submerged pump, small volume, high efficiency, energy saving effect is good, reliable operation, etc.Suitable for conveying corrosive media containing solid particles and abrasive.

Generally, the conveying temperature of the pump is 0~105℃. When the temperature is -20~0℃, 105~180℃, the heat preservation jacket and cooling jacket can be used, and the low temperature or high temperature wear-resistant guide bearing can be used.

If there is a small amount of solid particles in the conveying medium, the sliding bearing shall be lubricated externally (clean water with external pressure greater than 0.2mpa and other permitted media), and the user shall explain such situation.

The working pressure of the pump is designed according to 1.6mpa.

Performance range of the pump: flow is 1.6m3/h-2600m3/h, head is 5m-132m.

FY Explosion-Proof Stainless Steel Submerged Pump Sstructure Details:

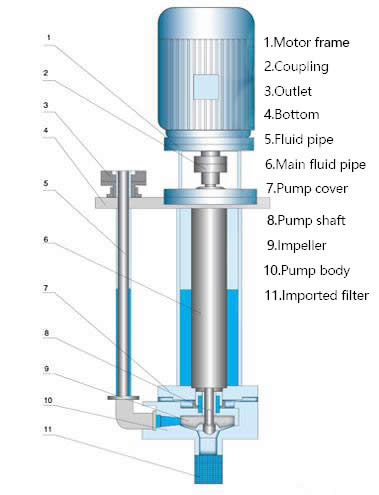

FY explosion-proof stainless steel Submerged pump is mainly composed of pump body, pump cover, impeller, shaft, elastic coupling, pipe flanges, guide bearing, intermediate takeover, up and down the fluid pipe, bearing frame, floor and other parts.

Pump suction along the axis direction: the outlet and the axis parallel.

Pump steering suction inlet to the motor end, for clockwise rotation.

FY explosion-proof stainless steel Submerged pump of vertical motor with double bolt tightening up on the motor seat, and through the elastic coupling with the pump rotation directly, pump body take over middle, bracket, fluid pipe, flange, with bolt connection constitute an organic whole, fixed on the market, overall pump through the backplane installed on the container, FY type pump to remove liquid contact parts other main parts, such as motor frame and bracket are made of cast iron.

FY Explosion-Proof Stainless Steel Submerged Pump Performance Parameters:

Model	Rated speed：n=2900r/min			Rated speed：n=1450r/min
	Flow Q (m3/h)	Head H (m)	Motor power: (KW)	Flow Q (m3/h)	Head （m）	Motor power （KW）
25FY-25	3.6	25	2.2	1.6	6	0.75
25FY-41	3.6	41	4	1.6	10	1.5
25FY-50	3.2	50	5.5	1.6	12.5	1.5
25FY-80	3.2	80	11	1.6	20	2.2
40FY-16	7.2	16	2.2	3.6	4	1.1
40FY-26	7.2	26	3	3.6	5	1.1
40FY-40	7.2	40	4	3.6	10	1.5
40FY-50	6.3	50	5.5	3.2	12.5	1.5
40FY-80	6.3	80	11	3.2	20	2.2
50FY-25	14.4	25	4	7.2	6	1.5
50FY-40	14.4	40	7.5	7.2	10	2.2
50FY-50	12.5	50	7.5	6.3	12.5	2.2
50FY-80	12.5	80	15	6.3	20	3
65FY-25	28.8	25	5.5	14	6	1.5
65FY-40	28.8	40	11	14	10	3
65FY-50	25	50	11	12.5	12.5	3
65FY-80	25	80	18.5	12.5	20	3
65FY-125	25	125	30	12.5	32	5.5
80FY-15	54	15	5.5	27	4	0.75
80FY-24	54	24	11	27	6	1.1
80FY-38	54	38	15	27	9	1.5
80FY-50	50	50	22	25	12.5	2.2
80FY-80	50	80	30	25	20	4
80FY-125	50	125	45	25	32	7.5
100FY-23	100	23	11	50	5	2.2
100FY-37	100	37	15	50	9	3
100FY-50	100	50	30	50	12.5	4
100FY-80	100	80	45	50	20	7.5
100FY-125	100	125	75	50	32	11
125FY-50	200	50	45	100	12.5	7.5
125FY-80	200	80	75	100	20	15
125FY-125	200	125	132	100	32	18.5
150FY-20				200	20	30
150FY-32				200	32	45
150FY-50				200	50	55
200FY-20				400	20	45
200FY-32				400	32	75
200FY-50				400	50	90
