Product Description

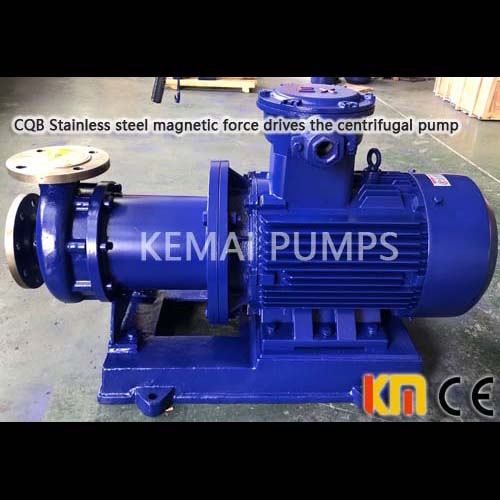

Stainless Steel Magnetic Pump Summary:

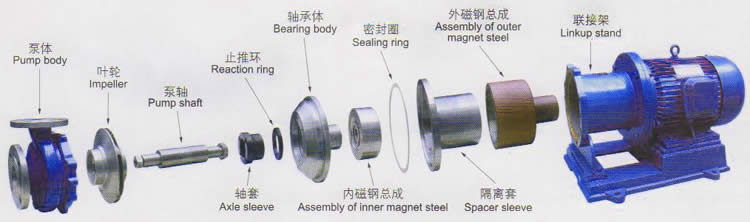

China KEMAI pump co., LTD. Develops and produces CQB stainless steel magnetic centrifugal pump (magnetic pump for short), which is composed of motor, magnetic coupling and corrosion-resistant centrifugal pump.Its main characteristic is the use of magnetic coupling to transfer power, completely no leakage, when the motor drives the magnetic steel magnetic coupling rotation, magnetic force line through the gap and isolation sleeve, acting on the internal magnetic steel, so that the pump rotor and motor synchronous rotation, no mechanical contact to transfer torque.At the power input end of the pump shaft, there is no dynamic seal and no leakage because the liquid is enclosed in a static isolation sleeve.CQB type magnetic pump is a new type of completely leakage-free and corrosion-resistant pump developed by the national joint design group of magnetic pump.

CQB magnetic pump is suitable for petroleum, chemical, pharmaceutical, smelting, electroplating, environmental protection, food, film and television washing and printing, water treatment, national defense and other industries.It is suitable for conveying liquids without hard particles and fibers with suction pressure no more than 0.2mpa, maximum working pressure no more than 1.6mpa, temperature no more than 100℃, density no more than 1600kg/m3 and viscosity no more than 30×10-6m2 / S.

CQB80-50-250 Stainless Steel Magnetic Pump Information:

Model	CQB100-65-250	Flow	100m3/h
Origin	Cangzhou city, hebei province, China	Head	80m
Material	SS304,SS316,SS316	Power	55KW
Inlet	100mm	Cavitation Allowance	3.5m
Outlet	65mm	Speed	2900r
Brand	KEMAI PUMP	Voltage	380V
Conveying Medium	Corrosive Liquid	Pump Shaft Position	horizontal
USES	Chemical Pump	Drive Way	magnetic
Impeller Suction Method	Single Suction	Impeller Structure	Enclosed Impeller

CQB100-65-250 Stainless Steel Magnetic Pump Performance Parameters:

Model	mm		Flow m3/h	Head m	Cavitation allowance m	Power KW	Speed rpm	Voltage v
	Inlet	Outlet
CQB32-20-125	32	20	3.2	20	4.5	1.5	2900	380
CQB32-20-160				32	4.5	2.2	2900	380
CQB40-25-125	40	25	6.3	20	4.5	2.2	2900	380
CQB40-25-160				32	4.5	3	2900	380
CQB40-25-200				50	4.5	5.5	2900	380
CQB50-32-100	50	32	12.5	12.5	4.0	2.2	2900	380
CQB50-32-125				20	4.0	3	2900	380
CQB50-32-160				32	4.0	4	2900	380
CQB50-32-200				50	4.0	7.5	2900	380
CQB50-32-250				80	4.0	18.5	2900	380
CQB65-50-125	65	50	25	20	4.0	4	2900	380
CQB65-50-160				32	4.0	7.5	2900	380
CQB65-40-200		40		50	4.0	15	2900	380
CQB65-40-250				80	4.0	22	2900	380
CQB80-65-125	80	65	50	20	3.5	7.5	2900	380
CQB80-65-160				32	3.5	15	2900	380
CQB80-50-200		50		50	3.5	22	2900	380
CQB80-50-250				80	3.5	37	2900	380
CQB100-100-100	100	100	100	12.5	3.2	7.5	2900	380
CQB100-80-125		80		20	3.2	15	2900	380
CQB100-80-160				32	3.2	22	2900	380
CQB100-65-200		65		50	3.2	37	2900	380
CQB100-65-250				80	3.2	55	2900	380
CQB125-125-160	125	125	160	32	3.2	37	2900	380
CQB125-100-200		100	200	50	3.2	75	2900	380
CQB125-100-250				80	3.2	90	2900	380
