CB-B160/200 high flow gear hydraulic oil pump
CB-B160/200 high flow gear hydraulic oil pump
Technical parameters:
Flow range: 160-600L/min
Pressure: 2.5 MPa
Power: 8.2 – 30 KW
Speed: 1450 r/min
Model: CB-B160 CB-B200 CB-B250 CB-B300 CB-B350 CB-B400 CB-B450 CB-B500 CB-B550 CB-B600
Product Description
CB-B Gear Pump: The oil pump features beautiful appearance, convenient maintenance, large flow and low noise from helical gears. It is widely used in metallurgy, ships, oil stations, plywood machinery and other hydraulic systems with working pressure lower than 2.5MPa.It can also be used in oil fields, oil tankers, oil vehicles, after corrosion prevention treatment, it can be used as a large flow pump pumping water.
Structural characteristics of
1. Small volume,
2. Light weight,
3. Simple structure
4. Reliable work
5. Easy maintenance
6. Used in the hydraulic system of machine tools
7. Textile machinery
8. As hydraulic energy and lubricating oil source
Gear pump directory:
CB-B gear pump model | Rated flow L/min |
Rated pressure MPa |
Rated Speed
r/min |
Efficiency
ηv% |
General Efficiency
ηt% |
Motor power KW |
CB-B160 | 160 | 2.5 | 1450 | ≥90 | ≥80 | 8.2 |
CB-B200 | 200 | 2.5 | 1450 | ≥90 | ≥80 | 10.1 |
CB-B250 | 250 | 2.5 | 1450 | ≥90 | ≥80 | 13 |
CB-B300 | 300 | 2.5 | 1450 | ≥90 | ≥80 | 15 |
CB-B350 | 350 | 2.5 | 1450 | ≥90 | ≥80 | 17 |
CB-B400 | 400 | 2.5 | 1450 | ≥90 | ≥80 | 20 |
CB-B500 | 500 | 2.5 | 1450 | ≥90 | ≥80 | 24 |
CB-B550 | 550 | 2.5 | 1450 | ≥90 | ≥80 | 28 |
CB-B600 | 600 | 2.5 | 1450 | ≥90 | ≥80 | 30 |

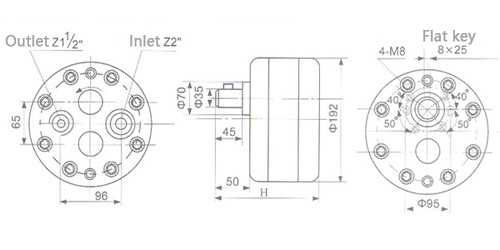

Gear pump size drawing:
Gear Pump CB-B Size Figure
Scope of application:
It is widely used in hydraulic system, textile machinery and other small and medium-sized machinery as hydraulic system energy and oil source and oil depot, oil tank, oil barrel to oil, etc.
