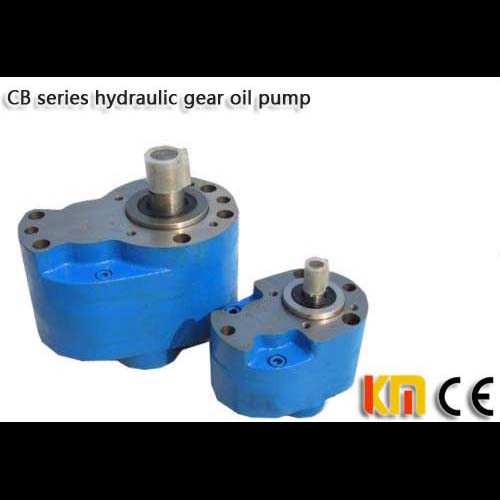

CB-B series low pressure gear pump & hydraulic oil pump
CB-B series low pressure gear pump & hydraulic oil pump
Product Description
Technical parameters:
Flow range: 2.5-160L/min
Pressure: 2.5 MPa
Power: 0.13 – 6.5 KW
Speed: 1450 r/min
Model: CB-B2.5 CB-B4 CB-B6CB-B10 CB-B16 CB-B20 CB-B25 CB-B32 CB-B40 CB-B50 CB-B63 CB-B80 CB-B100 CB-B125 CB-B160
CB-B Gear Pump: The oil pump features beautiful appearance, convenient maintenance, large flow and low noise from helical gears. It is widely used in metallurgy, ships, oil stations, plywood machinery and other hydraulic systems with working pressure lower than 2.5MPa.It can also be used in oil fields, oil tankers, oil vehicles, after corrosion prevention treatment, it can be used as a large flow pump pumping water.
Structural characteristics of
1. Small volume,
2. Light weight,
3. Simple structure
4. Reliable work
5. Easy maintenance
6. Used in the hydraulic system of machine tools
7. Textile machinery
8. As hydraulic energy and lubricating oil source
Gear pump directory:
Model | Flux L/min |
Pressure Mpa |
rotation r/min |
Volumetric NV% | Weight (kg) |
power (kw) |
CB-B2.5 | 2.5 | 2.5 | 1450 | ≥ 70 | 1.6 | 0.13 |
CB-B4 | 4 | ≥ 80 | 1.7 | 0.21 | ||
CB-B6 | 6 | 1.8 | 0.31 | |||
CB-B10 | 10 | 2.1 | 0.51 | |||
CB-B16 | 16 | ≥ 90 | 4.2 | 0.82 | ||
CB-B20 | 20 | 4.4 | 1.02 | |||
CB-B25 | 25 | 4.6 | 1.30 | |||
CB-B32 | 32 | ≥ 94 | 5.0 | 1.65 | ||
CB-B40 | 40 | 7.2 | 2.10 | |||
CB-B50 | 50 | 7.6 | 2.60 | |||
CB-B63 | 63 | 7.8 | 3.30 | |||
CB-B80 | 80 | 12.6 | 4.10 | |||
CB-B100 | 100 | ≥ 95 | 13.3 | 5.10 | ||
CB-B125 | 125 | 14.5 | 6.50 | |||
CB-B160 | 160 | 15.6 | 8.2 |
Gear pump size drawing:
Model | C | E | H | C1 | C2 | D(f8) | D1 | d(h7) | E1 | T | b | M | K1 | K2 |
CB-B2.5 | 79 | 66 | 96 | 25 | 30 | Φ50 | Φ12 | 35 | 30 | 4 | M6 | Z3/8″ | Z3/8″ | Z3/8″ |
CB-B4 | 82 | |||||||||||||
CB-6 | 86 | |||||||||||||
CB-B10 | 94 | |||||||||||||
CB-B16 | 107 | 90 | 132 | 30 | 35 | Φ50 | Φ55 | Φ6 | 50 | 42 | 5 | M8 | Z3/4″ | Z3/4″ |
CB-B20 | 111 | |||||||||||||
CB-B25 | 115 | |||||||||||||
CB-B32 | 121 | |||||||||||||
CB-B40 | 132 | 102 | 154 | 35 | 40 | Φ55 | Φ80 | Φ22 | 55 | 52 | 6 | M8 | Z1″ | Z3/4″ |
CB-B50 | 138 | |||||||||||||
CB-B63 | 144 | |||||||||||||
CB-B80 | 158 | 121 | 186 | 45 | 50 | Φ70 | Φ95 | Φ30 | 65 | 65 | 8 | M8 | Z11/4″ | Z1″ |
CB-B100 | 165 | |||||||||||||
CB-B125 | 174 | |||||||||||||
CB-B1 | 186 | Φ35 |
