Product Description

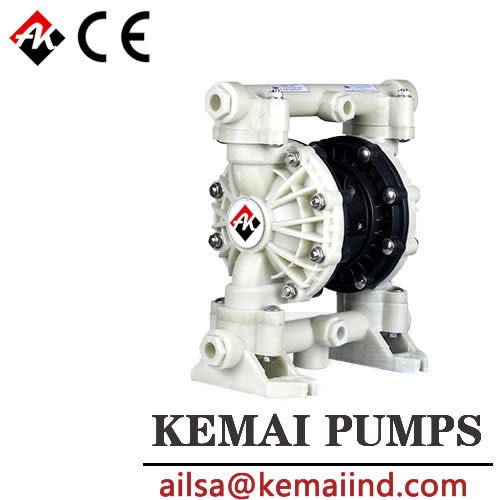

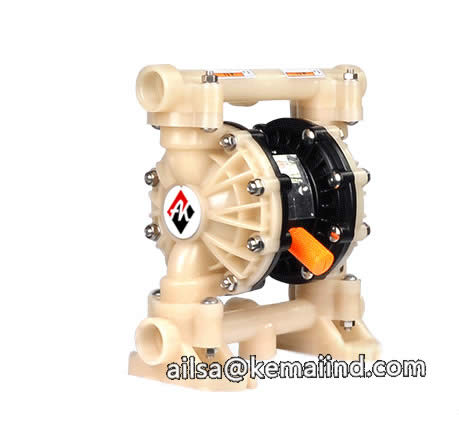

AODD Pneumatic diaphragm Pump Product Overview:

The AODD series pneumatic diaphragm pump produced by KEMAI of China is a new type of conveying machinery, using compressed air as the power source to transport various corrosive liquids, liquids with particles, high viscosity, volatile, flammable, toxic liquids.Its performance parameters were similar to WLLDENPVMPS in Federal Germany and MARlOWPUMPS in The United States.

Advantages of AODD pneumatic diaphragm pump:

The AODD pneumatic diaphragm pump can pump liquid flow, but also some difficult to flow medium

1. No irrigation water is needed.Suction up to 5m.The head reaches 70m~84m.Outlet pressure ≥7bar~8.4bar.

2. Good passability and spacious flow.Maximum particle diameter allowed through up to 10mm.Pumping mud, impurity containing liquid, little wear to the pump;

3. Stepless regulation of head and flow can be realized through air valve opening (air pressure regulation is between 1 and 8.4 bar) :

4, the pump no rotating parts, no shaft seal, diaphragm and other pumping media and moving parts of the pump, workpiece, medium is completely separated, the medium delivered will not leak out.So when pumping toxic, easy to play or corrosive media, will not cause environmental pollution and harm to personal safety;

5. No electricity.Safe and reliable in inflammable and explosive working environment;

6. Can work immersed in medium:

7. Only open and close the gas valve for startup and shutdown.Even if due to unexpected circumstances and a long time without medium operation or sudden stop pump will not be damaged.Overload, the pump will stop automatically, with self-protection performance, when the load returns to normal, it can automatically start operation;

8, the pump structure is simple, easy to install and maintain, the pump transmission medium will not touch the valve, coupling and other moving parts, unlike other types of pump due to the wear of rotor, piston, gear, blade and other parts and gradually decline in performance;

9. It can transport relatively viscous liquid (viscosity below 10,000 cp) :

10, the pump does not need oil lubrication, idling has no impact on the pump.

AODD Diaphragm pump best potential

Using compressed air as power source, for a variety of corrosive liquids, liquids with particles, high viscosity, volatile, flammable, highly toxic liquids, can be pumped out, especially suitable for flammable and explosive field.

Can force

Product operation, safe and reliable, corrosion resistance, durable, self-priming, idling nondestructive, a variety of materials, a wide range of USES, simple device, free of maintenance.

Application market

1. Food processing/biological health/pharmacy

2. Automobile/plating and polishing

3. Ceramics/paints/glazes

4. Chemical/Petroleum

5. Chemical construction/public facilities

6. Mechanical support/waste water treatment

AODD Diaphragm Pump Product Features:

1. Since air is used as power, the flow rate is automatically adjusted with the change of back pressure (outlet resistance), suitable for medium and high viscosity fluids.

2. Pneumatic pump is safe and reliable in inflammable and explosive environment with low cost, such as the transportation of fuel, gunpowder and explosive.

3, in the site of bad places, such as construction sites, industrial and mining waste water discharge, due to the impurities in the sewage and complex composition, pipeline is easy to plug, pneumatic diaphragm pump through the particles and flow can be adjusted, automatically stop to unobstructed when the pipeline is blocked.

4, in addition to the pneumatic diaphragm pump small volume easy to move, do not need the foundation, occupy the ground is very small, simple and economical installation.It can be used as mobile material conveying pump.

5, in hazardous, corrosive material treatment, diaphragm pump can be completely separated from the material and the outside.

6, good sealing, no leakage to ensure that there is no impurities contaminated raw materials.

7, can be used to transport more unstable chemical properties of the fluid, such as: photosensitive materials, flocculant, etc.This is because the diaphragm pump shear force is low, the physical impact on the material is small.
