Product Description

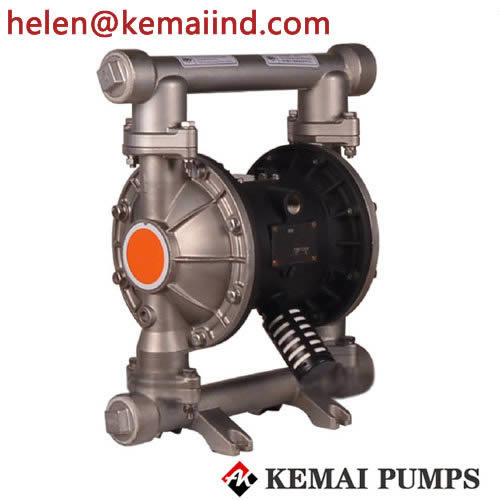

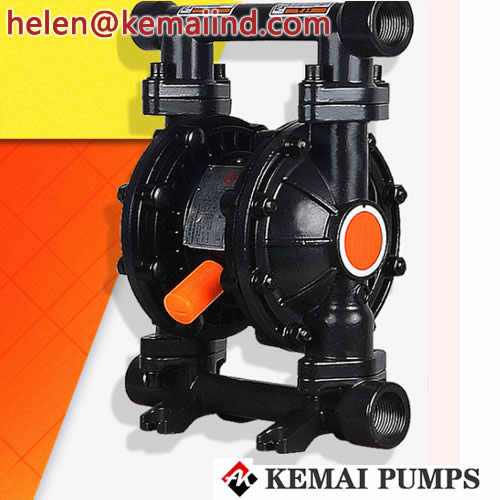

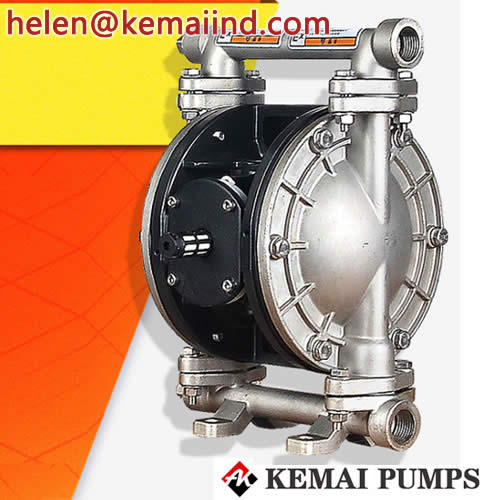

AODD Diaphragm pump material：

Aluminum alloy/stainless steel/cast steel/PP/fluoroplastics/PTFE Applicable to different liquids, if the customer has any special requirements can be customized.

AODD Diaphragm pump Diaphragm Pump Advantages:
– Superior air motor, no leakage and keep strong driving force even use after long time;
– Double thicken fluid cover than ordinary pump
– Perfect sealing design
– PP material, diaphragms and all sealing parts imported from USA
– Easy maintenance
Diaphragm Pump Application area:
Chemical Industry; Coating Industry; Painting Industry; Dye Industry; Pigment and Textile Chemical Industry; Food Industry; Water treatment Industry; Petroleum Industry; Environmental protection Industry; Pharmaceutical Industry

Model	CalibreSIZE	Max.Flow(L/min)	Max.Head(M)	Outlet pressure(bar)	Air inlet size
AODD-10	10 (3/8″)	22	70	7	1/4″
AODD-15	15 (1/2″)	22	70	7	1/4″
AODD-20	20 (3/4″)	57	70	7	1/4″
AODD-25	25 (1″)	57	70	7	1/4″
AODD-25A	25 (1″)	116	84	8.4	1/2″
AODD-32	32 (1.2″)	151	84	8.4	1/2″
AODD-40	40 (1.5″)	151	84	8.4	1/2″
AODD-40A	40 (1.5″)	378.5	84	8.4	1/2″
AODD-50	50 (2″)	378.5	84	8.4	1/2″
AODD-65	65 (2.5″)	378.5	84	8.4	1/2″
AODD-50A	50 (2″)	586	84	8.4	1/2″
AODD-80	80 (3″)	586	84	8.4	1/2″
AODD-100	100 (4″)	586	84	8.4	1/2″
AODD-80A	80 (3″)	1041	84	8.4	3/4″
AODD-125	125 (5″)	1041	84	8.4	3/4″
