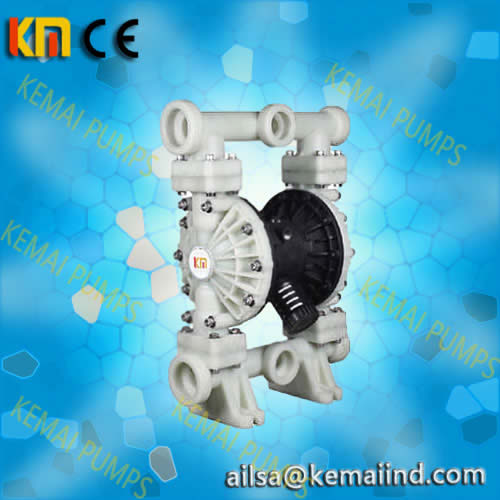

AODD-50/65-PPT- Air Operated Double Diaphragm Pump
AODD-50/65-PPT- Air Operated Double Diaphragm Pump
Diameter: 3/8 inch, 1/2 inch, 3/4 inch, 1 inch, 1-1/4 inch, 1-1/2 inch, 2 inch, 2-1/2 inch, 3 inch, 4 inch, 5 inch;
Flow rate: 22L/min~1041L/min; Head: 70 m ~ 84 m;
Pressure: 7 bar to 8.4 bar.
AODD Air Operated Double Diaphragm Pump, manufactured by KEMAI Industrial Pump Co., LTD., is used for delivering high-viscosity, volatile, flammable, toxic liquid, such as: pulp, juice, milk, paint, cement, sewage with grain, molasses, glue, flour, dust, etc. This pump can be said to be an all-purpose pump.
Product Description
Air Operated Diaphragm Pump Product Overview:
AODD series Air Operated Diaphragm Pump produced by KEMAI of China is a new type of conveying machinery, using compressed air as the power source to transport various corrosive liquids, liquids with particles, high viscosity, volatile, flammable, toxic liquids. The performance parameters are similar to those of the WLLDENPVMPS from The Federal Republic of Germany and the MARlOWPUMPS from the United States. AODD Air Operated Diaphragm Pump can pump both flowing liquid and some viscous and emulsion substances which are not easy to flow.
AODD 50/65 Air Operated Double Diaphragm Pump Data Sheet:
| Specifications | AODD-50 | AODD-65 |
| Max.Flow | 100 gpm (378.5 lpm) | 100 gpm (378.5 lpm) |
| Max.Working Pressure | 120 psi (0.84 Mpa,8.4 bar) | 120 psi (0.84 Mpa,8.4 bar) |
| Fluid Inlet Size | 2 in.bsp (f) | 2-1/2 in.bsp (f) |
| Fluid Outlet Size | 2 in.bsp (f) | 2-1/2 in.bsp (f) |
| Air Inlet Size | 1/2 in.bsp (f) | 1/2 in.bsp (f) |
| Max.Suction Height(dry suction) | 18 ft. (5.48 m) | 18 ft. (5.48 m) |
| Max.Permitted Grain | 3/16 in. (4.8 mm) | 3/16 in. (4.8 mm) |
| Max. Air Consumption | 32 scfm | 32 scfm |
| Every Reciprocating Flow | 0.5 gal. (1.9L) | 0.5 gal. (1.9L) |
| Max. Reciprocating Speed | 276 cpm | 276 cpm |
| Pump body structure | Cast steel Nodular cast iron Aluminum alloy PP Stainless steel PVDF | |
AODD 50/65 Air Operated Double Diaphragm Pump Type:
| Details Parameter | |||||||
| Model | Max.Flow
(L/min) |
Max.Lift
(m) |
Max.suction Lift
(m) |
Outlet Pressure
(bar) |
Caliber
(mm) |
Inlet Caliber
(in) |
Grain Diameter
(mm) |
| AODD-10 | 18.9 | 70 | 2.5-3 | 7 | 10 | 1/4 | 1.5 |
| AODD-15 | 18.9 | 70 | 2.5-3 | 7 | 15 | 1/4 | 1.5 |
| AODD-20 | 57 | 70 | 4.5 | 7 | 20 | 1/4 | 2.5 |
| AODD-25 | 57 | 70 | 4.5 | 7 | 25 | 1/4 | 2.5 |
| AODD-25A | 116 | 84 | 5.48 | 8.4 | 25 | 1/2 | 3.2 |
| AODD-32 | 151 | 84 | 5.48 | 8.4 | 32 | 1/2 | 3.2 |
| AODD-40 | 151 | 84 | 5.48 | 8.4 | 40 | 1/2 | 3.2 |
| AODD-50 | 378.5 | 84 | 5.48 | 8.4 | 50 | 1/2 | 4.8 |
| AODD-65 | 378.5 | 84 | 5.48 | 8.4 | 65 | 1/2 | 4.8 |
| AODD-80 | 568 | 84 | 5.48 | 8.4 | 80 | 1/2 | 6.3 |
| AODD-100 | 568 | 84 | 5.48 | 8.4 | 100 | 1/2 | 6.3 |
| AODD-125 | 1041 | 84 | 2.4-7.6 | 8.4 | 125 | 3/4 | 9.4 |
AODD 50/65 Air Operated Double Diaphragm Pump advantages：
* Safety design, using compressed air as the driving source, can be used in explosion-proof facilities. It can also be used with flammable chemicals such as solvents.
* Can transfer corrosive chemicals: the ideal choice for conveying a variety of acidic chemicals and strong alkaline chemicals.
* Easy to maintain: No mechanical seal, so no need to worry about liquid leakage. Simple construction makes it easy to disassemble and maintain.
* Fully equipped pump, no packing required. It is self-sufficient (approximately -5m in the case of water) and can handle air mixing and idling operation.
* Easily adjust flow. The flow rate can be adjusted by opening and closing the pipe valve and providing air pressure. Even if the valve is closed, the pump will not be damaged.
*Pneumatic diaphragm pump is an independent volume change pump driven by the compressed air of the compressor.
*Supports the transfer of all types of liquids, such as emulsion liquids, grout liquids, high viscosity liquids and explosive chemicals.
