Product Description

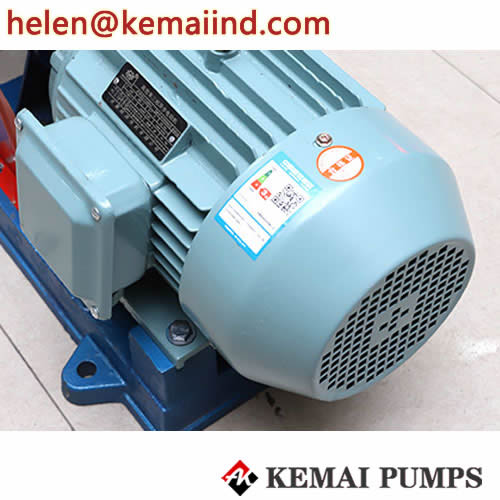

3 Inch RY Hot oil pump With scientific construction and excellent performance, it is used in transporting high temperature liquid without solid particles. And the corrosion-resistant degree and working temperature is depended on the material of the parts.

Application scope
1. Petro-chemical industry
2. Oill industry, hot oil circulation system
3. Synthetic-fibre
4. Textile dyeing and printing industry
5. Plastic and rubber industry
6. Papermaking industry
7. Timper process industry
8. Construction and building industry

RY Hot oil pump shaft seal：

(1) RY Hot oil pump  with the combination of packing seal and mechanical seal, packing seal use high temperature resistant packing, has the good thermal adaptability, while mechanical seal adopts high mechanical strength and wear resistance, good hard alloy material, which guarantees the sealing performance under high temperature conditions.
(2) Adopts imported polyethylene (PTFE) as lip shape seal, make the sealing performance much better, seal reliability of 25 times than rubber seal, and with very strong corrosion-resist ability.

Model	Capacity m 3 /h	Lift m	Speed r/min	Power kw		Efficiency η%	Motor-Y
				Shaft power	Power Distribution
RY80-50-200	50	50	2900	9.7	15	70	160M2
RY80-50-200A	45	40	2900	7.8	11	63	160M1
RY80-50-200B	40	32	2900	6.37	7.5	55	132S2
RY80-50-250	50	80	2900	17.1	22	58	180M
RY80-50-250A	43	60	2900	12.8	15	55	160M2
RY80-50-315	50	125	2900	30.4	45	56	225M
RY80-50-315A	45	100	2900	23.6	30	52	200L1
